3-15 Oximeter

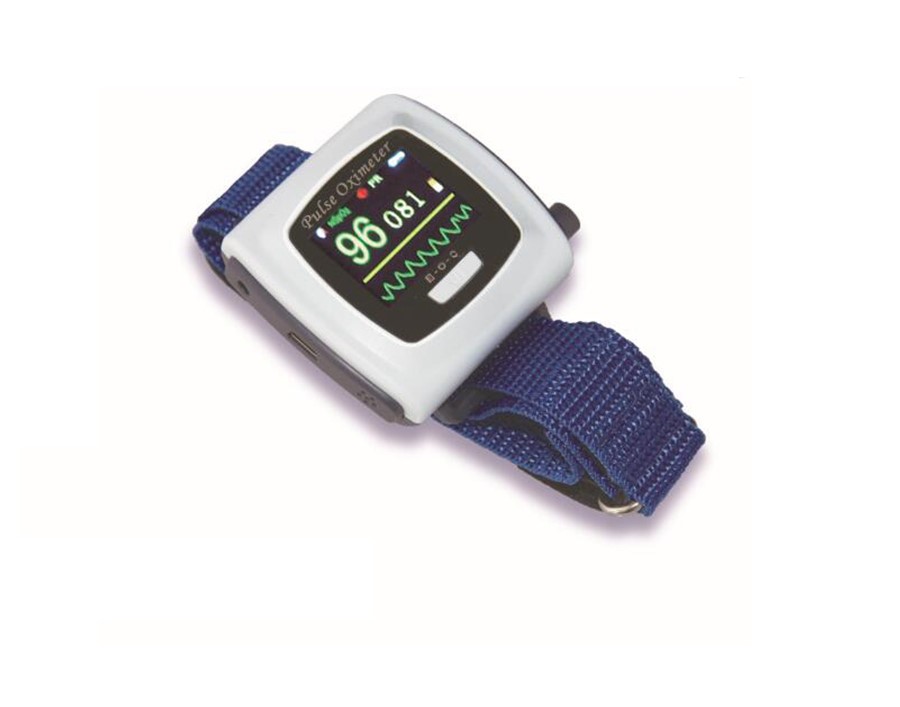

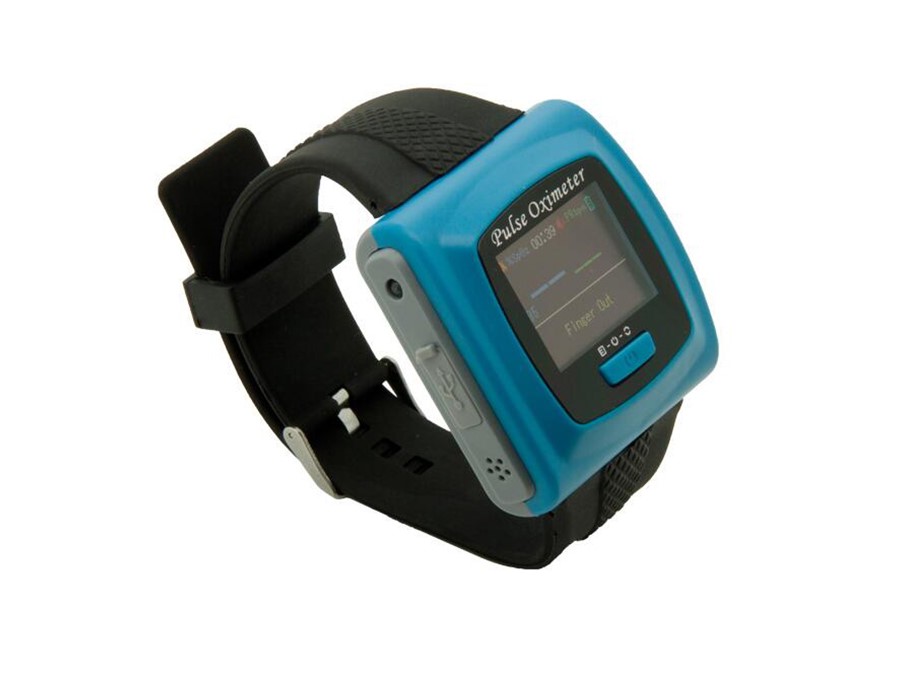

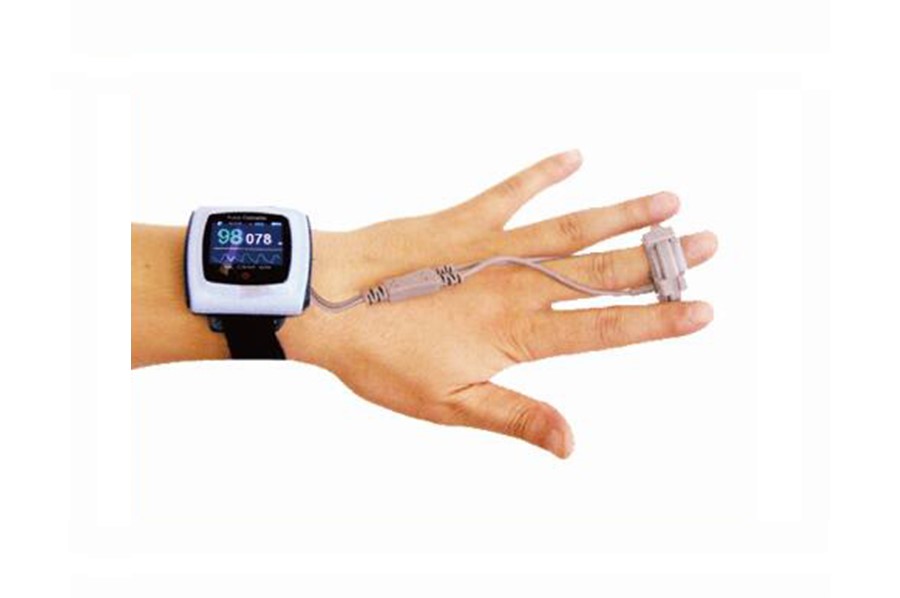

LM-CMS50F Wrist Pulse Oximeter
LM-CMS50F WRIST PULSE OXIMETER
The CMS50F Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology in accordance with Capacity Pulse Scanning & Recording Technology, which can be used to measure human oxygen saturation and pulse rate through finger. The device is suitable for being used in family, hospital, oxygen bar, community healthcare and physical care in sports, etc. (It can be used before or after exercise, but not recommended to use during exercising.)
Function:
1. Small in volume, light in weight and convenient in carrying.
2. Easy to operate, low power consumption.
3. SpO2 value display.
4. Pulse rate value display, bar graph display.
5. Pulse waveform display.
6. Display direction can be changed.
7. Screen brightness can be changed.
8. Pulse rate sound indication.
9. With measured data overruns limits and low-voltage alarm function, the upper/lower alarm limit can be adjusted.
10. Clock function.
11. Battery capacity indication.
12. Low-voltage indication: Low-voltage indication appears before working abnormal caused by low voltage.
13. Data storage function, stored data can be uploaded to computer.
14. Data transmission in real-time (suitable for Lemo probe, but not for USB probe).
15. External SpO2 probe.
Features:
1. Compact and light weight design, fit comfortably on the patients wrist.
2. Simply plug in the senor and out.
3. For spot checking short and term monitoring applications .
4. High accuracy and repetition.
5. Friendly operation menu for the function setting.
6. 65K color OLED display with 2 direction.
7. Pulse strength: OLED Graphic display.
8. Battery Voltage indication: OLED graphic display.
9. USB interface for computer and advanced software for sleep study and monitoring.
10. Inner flash memory for data storage.
11. Option: wire communication.
Display mode | 1.3 inches, 65K color OLED display |
Display resolution | 128*96 |
Blood oxygen saturation measurement | 0%~100%(The resolution is: 1%) |
Accuracy | 70%~100%: ±2%,Less than 70% undefined |
Pulse rate measurement range | 30bpm~25bpm(The resolution is: 1bpm) |
Accuracy | ±2bpm or 2% for large values |
Power consumption | ≯100mA |
Operating Voltage | DC 3.6V~4.2V |
Battery | A 3.7V rechargeable lithium battery |
Battery working time | theoretical value 20 hours |
Battery life | no less than 500 charge and discharge |
Standard | 1 manual, 1 USB cable, 1 strap, 1 CD, 1 power adapter |
Size | 61 (length) X 56 (width) X 24 (height) |
Weight | about 60g (including a lithium battery) |
