3-15 Oximeter

LM-CMS50K Wearable Oximeter

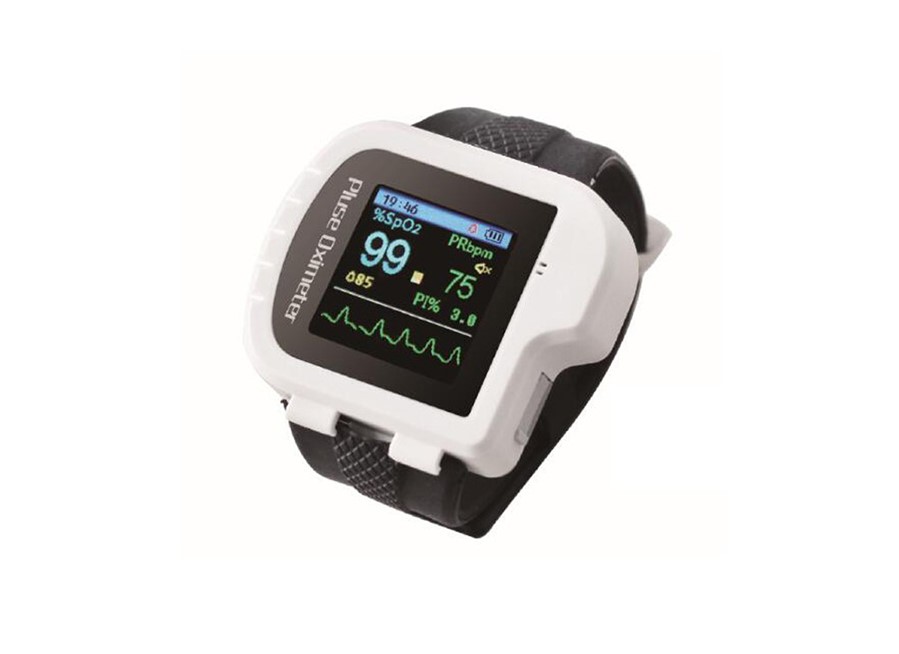

LM-CMS50K WEARABLE OXIMETER

CMS50K Wearable SpO2/ECG Monitor integrated functions of SpO2, ECG and pedometer in one  product.



Main Features:
1. Wrist design, auto-recognition function, simple and convenient to operate.
2. Several sport items can be recorded and exercise summary can be checked. Step and distance can be recorded by the built- in pedometer which can monitor all-day activities, calorie and activities time.
3. HR can be measured automatically, HR interval can be simplified, and ECG waveform marked 1 can be measured and displayed.
4. Continuous monitoring(more than 8h) for SpO2, PR and body movement, which is used in sleep monitoring.
5. Color OLED display adopting blank screen design of low power consumption, which meets the use requirement for long time.
6. SpO2 value can be measured by connecting SpO2 probe. PR value, bar graph and pulse waveform can be synchronously displayed.
7. Wireless synchronization: health report feedback from APP.


■ Display of SpO2 value.

■ Display of pulse rate value.
■ Display of heart rate value and ECG waveform.
■ Display of step number and calorie.
■ Low-battery indication.
■ Data storage function.
■ The data stored can be wireless uploaded to mobile terminal.
■ Clock function.
■ Charging function.


Measurement range of SpO2 0%~100%, error: 70%~100%: ±2%; 0%~69%: unspecified
Measurement range of pulse rate 30bpm~250bpm, error: ±2bpm or ±2%(select the larger)
Measurement range of heart rate 30bpm~300bpm, display error is ±1bpm or 1%(select the larger)
Resolution SpO2: 1%, Pulse rate: 1bpm
Measurement Performance in Weak Filling Condition SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger)
Resistance to surrounding light The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%
Pedometer range 0~65535steps (resolution: one step)
Operating Current ≤100mA
Power supply built-in rechargeable lithium batteries, voltage is 3.7V
The degree of protection against electroshock type BF applied part
The grade of protection against ingress of liquid IP54
Dimension 50.4mm(L)*41.4mm(W)*14.7mm(H)
Weight About 73g(not including accessories)
