1-15 Disposable Infusion Pump

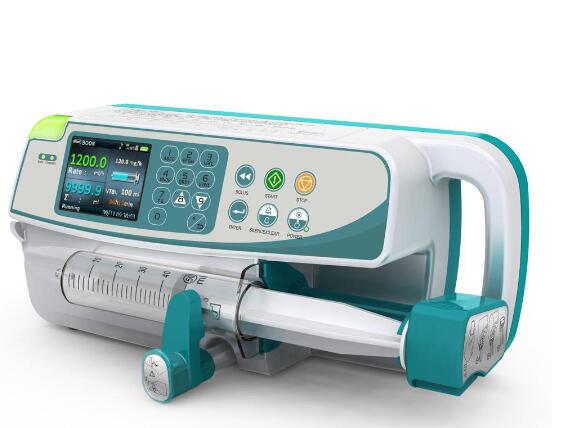

Single-channel Electric Syringe Pump for Medical HK-400
SINGLE-CHANNEL ELECTRIC SYRINGE PUMP FOR MEDICAL HK-400
Single-channel Electric Syringe Pump for Medical
Features:
1. History records
2. Unique intelligent self-recognition technology of syringes
3. KVO, Bolus and Anti-bolus
4. Applicable for 5,10,20,30,50(60)ml syringes
5. Compatible for various brands of syringes
6. Various infusion modes to meet different clinical requirement
7. Various visual and audible alarms
8. Numeric keys design, easy to operate
9. Large colorful LCD screen
10. Real time display, ensure the infusion information to be recorded correctly
11. 3 adjustable occlusion levels, dynamically display the pressure
12. Night mode
13. Double CPU ensuring safe infusion
Specification:
| Product name | Hospital Use Electric Syringe Infusion Pump PRSP-H4000V Medical Pump for animal vet use |
| Infusion rate |
5 ml syringe : 0.1-150ml/h
10ml syringe: 0.1-300ml/h
20ml syringe: 1.0-600ml/h
30ml syringe: 0.1-900ml/h
50ml syringe: 0.1-1500ml/h
|
| Syringe accuracy | ±2%(After syringe correct calibration) |
| Applicable syringes | Various brands of sterile syringes(Meet GB15810-2001 standard): 5ml, 10ml, 20ml, 30ml, 50ml/60ml |
| Volume to be infused | 0-1000(ml) |
| Volume infused | 0-9999.9(ml) |
| KVO rate | 0.1-2ml/h adjustable; default value 0.1ml/h |
| BOLUS(ML/H) |
5 ml syringe : 100-150ml/h
10ml syringe: 100-300ml/h
20ml syringe: 100-600ml/h
30ml syringe: 100-900ml/h
50ml syringe: 100-1500ml/h
|
| Infusion mode |
rate mode
time mode
Body Weight mode
|
| History record | 1600 records |
| Computer interface | RS232 interface |
| Alarm | Syringe disengaged, Near compoletion, Infusion completion, Empty, Occlusion, Low Battery, handle off etc |
| Power supply |
DC:12±1.2V
AC:100~240V, 50/60HZ
|
| Battery | Rechargeable Li Polymer battery, 7.4V 1900mAh |
| Battery charging time | 10 hours with power on, 3 hours with power off |
| Battery operating time | >6 hours at 5ml/h |
| Power consumption | 25 VA |
| Classification | Class l, type CF |
| Dimension | 300x125x130mm |
| Net Weight | 1.8kg |
| Waterproof level | IPx3 |
| Occlusion pressure | (40.0-60.0)kpa 3 adjustable occlusion pressure : low middle, high |
| Operating conditions |
Temperature :5°C-40 °C, relative humidity :10-95%
Atmosphere pressure:86-106kpa
|
| Transport conditions |
Tempearture:-20℃-60℃,relative humidity:10-95%
Atmosphere pressure:50-106kPa
|
| Storage conditions |
Temperature :5- 20 °C-45 °C, relative humidity :10-95%
Atmosphere pressure:506-106kpa
|
